BYD Tang DM Mid-size SUV EV, Rental and Road Trip

Basic Information

•  Power (kW): 102 (139 hp)
• Electric Motor Maximum Official Guide Price: 179,800 CNY
• Manufacturer: BYD
• Class: Midsize SUV
• Energy Type: Plugin Hybrid
• Launch Date: February 2024
• Engine: 1.5T, 139 hp, L4 Plugin Hybrid
• Electric Range (km) MIIT: 95
• Electric Range (km) NEDC: 112
• Electric Range (km) WLTC: 95
• Combined Range (km) NEDC: 1050
• Charging Time (hours): Fast Charge 0.5 hours, Slow Charge 3 hours
• Fast Charging Capacity (%): 3080
• Engine Maximum Power (kW): 160 (218 hp)
• Engine Maximum Torque (N·m): 231
• Electric Motor Maximum Torque (N·m): 325
• Transmission: ECVT Continuously Variable Transmission
• Dimensions (L x W x H) (mm): 4870 x 1950 x 1725
• Body Structure: 5 door, 7 seat SUV
• Top Speed (km/h): 180
• Official 050 km/h Acceleration Time (s): 4.3
• WLTC Combined Fuel Consumption (L/100km): 1.27
• Electricity Consumption per 100 km (kWh/100km): 18.2 kWh
• Equivalent Fuel Consumption (L/100km): 2.06
• Minimum SOC Fuel Consumption (L/100km)  WLTC: 5.85
• Minimum SOC Fuel Consumption (L/100km)  NEDC: 5.5
• Vehicle Warranty: 6 years or 150,000 km
• Estimated Maintenance Cost for 60,000 km: 6934.0 CNY

Vehicle Body

• Length (mm): 4870
• Width (mm): 1950
• Height (mm): 1725
• Wheelbase (mm): 2820
• Front Track (mm): 1650
• Rear Track (mm): 1630
• Body Structure: SUV
• Number of Doors: 5
• Door Opening Method: Swing Doors
• Number of Seats: 7
• Curb Weight (kg): 2153
• Gross Weight (kg): 2678
• Fuel Tank Capacity (L): 53.0
• Trunk Volume (L): 2351655
• Minimum Turning Radius: 5.9 m

Engine

• Engine Model: BYD476ZQC
• Displacement (mL): 1497
• Displacement (L): 1.5
• Intake Form: Turbocharged
• Engine Layout: Transverse
• Cylinder Arrangement: L
• Number of Cylinders: 4
• Number of Valves per Cylinder: 4
• Valve Mechanism: DOHC
• Maximum Horsepower (hp): 139
• Maximum Power (kW): 102
• Maximum Torque (N·m): 231
• Engine Thermal Efficiency (%): 43.04
• Engine Special Technology: VVT
• Fuel Type: Plug-in Hybrid
• Fuel Label: 92#
• Fuel Supply Method: Direct Injection
• Cylinder Head Material: Aluminum Alloy
• Cylinder Block Material: Aluminum Alloy
• Emission Standard: China VI

Electric Motor

• Motor Description: Plug-in Hybrid, 218 hp
• Motor Type: Permanent Magnet/Synchronous
• Total Motor Power (kW): 160
• Total Motor Horsepower (hp): 218
• Total Motor Torque (N·m): 325
• Front Motor Maximum Power (kW): 160
• Front Motor Maximum Torque (N·m): 325
• Number of Drive Motors: Single Motor
• Motor Layout: Front

Battery/Charging

• Battery Type: Lithium Iron Phosphate Battery
• Battery Special Technology: Blade Battery
• Battery Cell Brand: BYD
• Battery Pack Warranty: Unlimited years/mileage for the first owner (subject to official terms and conditions)
• Battery Capacity (kWh): 21.5
• Maximum Fast Charging Power (kW): 40
• Fast Charging Port Location: Right side fuel tank position
• Slow Charging Port Location: Right side fuel tank position
• Battery Temperature Management System: Low temperature heating, liquid cooling
• VTOL Mobile Power Station Function: Standard
• VTOL Maximum External Discharge Power: 6 kW
• Minimum Allowable External Discharge Battery Level (%): 15

Transmission

• Transmission Description: ECVT Continuously Variable Transmission
• Number of Gears: Continuously Variable
• Transmission Type: Electronic Continuously Variable Transmission (ECVT)

Chassis/Steering

• Drive Type: Frontengine, front-wheel drive
• Front Suspension Type: MacPherson Independent Suspension
• Rear Suspension Type: Multilink Independent Suspension
• Steering Type: Electric Power Steering
• Body Structure: Unibody

Wheels/Brakes

• Front Brake Type: Ventilated Disc
• Rear Brake Type: Solid Disc
• Parking Brake Type: Electronic Parking Brake
• Front Tire Size: 255/50 R20
• Rear Tire Size: 255/50 R20

Active Safety

• ABS (Anti-lock Braking System): Standard
• Brake Force Distribution (EBD/CBC, etc.): Standard
• Brake Assist (EBA/BA, etc.): Standard
• Traction Control (TCS/ASR, etc.): Standard
• Electronic Stability Program (ESP/DSC, etc.): Standard
• Active Safety Warning System: Lane Departure Warning, Forward Collision Warning
• Automatic Emergency Braking: Standard
• Lane Keeping Assist System: Standard
• Lane Centering Assist: Standard
• Traffic Sign Recognition: Standard

Passive Safety

• Front Airbags: Driver and Passenger
• Side Airbags: Front Row
• Side Curtain Airbags: Standard
• Seatbelt Reminder: Standard
• Tire Pressure Monitoring System (TPMS): Tire Pressure Display
• Child Seat Anchors (ISOFIX): Standard

Assistance/Control Configuration

• Parking Sensors: Front and Rear
• Driver Assistance Imaging: Reversing Camera, 360° Panoramic Camera, Transparent Imaging
• Cruise Control System: Cruise Control, Adaptive Cruise Control, Full speed Adaptive Cruise Control
• Assisted Driving Level: Level 2
• Automatic Parking (AUTOHOLD): Standard
• Hill-start Assist Control (HAC): Standard
• Hill Descent Control (HDC): Standard
• Adjustable Suspension: Soft/Hard
• Driving Mode Selection: Sport, Snow, ECO/Economic, Standard Comfort
• Brake Energy Regeneration System: Standard
• Low-speed Driving Warning Sound: Standard

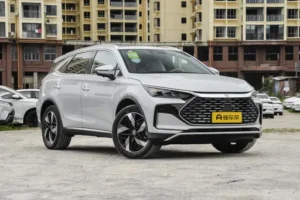

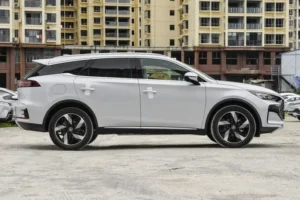

EV Picture Exhibition
