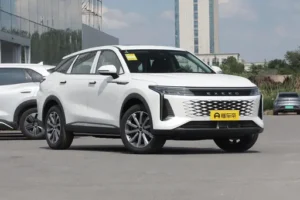

EXEED Yaoguang C-DM Mid-size SUV – EV, Rental and Road Trip
Road Pioneer offers rental, test drives, and even purchase services for the EXEED Yaoguang C-DM. We can assist you in applying for a temporary Chinese driver’s license.
| Basic Information |
| Official guide price |
| 159,800 CNY |
| Manufacturer |
| Star Path |
| level |
| Mid-size SUV |
| Energy Type |
| Plug-in hybrid |
| Availability |
| 2024.03 |
| engine |
| 1.5T 156HP L4 Plug-in Hybrid |
| Pure electric range (km) Ministry of Industry and Information Technology |
| 83 |
| Pure electric range (km) WLTC |
| 83 |
| Pure electric range (km) CLTC |
| 98 |
| Comprehensive cruising range (km) Ministry of Industry and Information Technology |
| 1300 |
| Comprehensive cruising range (km) WLTC |
| 1300 |
| Charging time (hours) |
| Fast charge 0.33 hours Slow charge 3.5 hours |
| Fast charging capacity (%) |
| 30-80 |
| Maximum power (kW) |
| 270 |
| Maximum torque (N·m) |
| 605 |
| Gearbox |
| 3-speed DHT |
| Length x width x height (mm) |
| 4781x1920x1671 |
| Body structure |
| 5-door 5-seater SUV |
| Maximum speed (km/h) |
| 180 |
| Official 0-100km/h acceleration time (s) |
| 7.9 |
| WLTC comprehensive fuel consumption (L/100km) |
| 1.49 |
| Power consumption per 100 km (kWh/100km) |
| 16.3kWh |
| Electric energy equivalent fuel consumption (L/100km) |
| 1.84 |
| Minimum state-of-charge fuel consumption (L/100km) Ministry of Industry and Information Technology |
| 5.4 |
| Vehicle warranty period |
| 3 years or 100,000 km |
| First Owner Warranty Period |
| No limit on years/mileage (liability exemption clauses are subject to official regulations) |
| Body |
| Length(mm) |
| 4781 |
| Width(mm) |
| 1920 |
| Height(mm) |
| 1671 |
| Wheelbase(mm) |
| 2815 |
| Front wheel track (mm) |
| 1641 |
| Rear track (mm) |
| 1642 |
| Body structure |
| SUV |
| Number of doors |
| 5 |
| Door opening method |
| Swing door |
| Number of seats |
| 5 |
| Curb weight(kg) |
| 1913 |
| Full load mass (kg) |
| 2325 |
| Fuel tank capacity (L) |
| 70 |
| Luggage compartment volume (L) |
| 660-1783 |
| Minimum turning radius |
| engine |
| engine model |
| SQRH4J15 |
| Displacement (mL) |
| 1499 |
| Displacement(L) |
| 1.5 |
| Air intake form |
| Turbocharger |
| Engine layout |
| Sideways |
| Cylinder arrangement |
| L |
| Number of cylinders |
| 4 |
| Number of valves per cylinder |
| 4 |
| Compression ratio |
| Air Supply |
| DOHC |
| Maximum horsepower (Ps) |
| 156 |
| Maximum power (kW) |
| 115 |
| Maximum power speed (rpm) |
| 5200 |
| Maximum torque (N·m) |
| 220 |
| Maximum torque speed (rpm) |
| 2500-4000 |
| Engine thermal efficiency (%) |
| 44.5 |
| Engine-specific technologies |
| Miller cycle |
| Fuel form |
| Plug-in hybrid |
| Fuel grade |
| 92# |
| Oil supply method |
| Direct injection |
| Cylinder head material |
| Aluminum Alloy |
| Cylinder material |
| Aluminum Alloy |
| Environmental standards |
| National VI |
| Electric Motor |
| Motor Description |
| Plug-in hybrid 224 horsepower |
| Motor Type |
| Permanent magnet/synchronous |
| Total motor power (kW) |
| 165 |
| Total motor horsepower (Ps) |
| 224 |
| Total torque of the motor (N·m) |
| 390 |
| Maximum power of front motor (kW) |
| 165 |
| Maximum torque of front motor (N·m) |
| 390 |
| System total power (kW) |
| 270 |
| System comprehensive torque (N·m) |
| 605 |
| Number of drive motors |
| Dual motors |
| Motor layout |
| Pre |
| Charging batteries |
| Battery Type |
| Ternary lithium battery |
| Battery brand |
| Guoxuan High-tech |
| Battery Pack Warranty |
| No age or mileage limit for the first owner (liability exemption clause is subject to official regulations) |
| Battery capacity (kWh) |
| 19.43 |
| Battery energy density (Wh/kg) |
| 153 |
| Battery charging rate |
| Charging batteries |
| Fast charge 0.33 hours Slow charge 3.5 hours |
| ●Fast charging port |
| Fast charging port location |
| Left fuel tank |
| Slow charging port location |
| Left fuel tank |
| Battery Temperature Management System |
| ●Low temperature heating |
| ●Liquid Cooling |
| Single pedal mode |
| VTOL mobile power station function |
| ●Standard |
| VTOL maximum external discharge power |
| 6.6kW |
| VTOV maximum external discharge power |
| Gearbox |
| Gearbox Description |
| 3-speed DHT |
| Number of gears |
| 3 |
| Gearbox Type |
| Dedicated Hybrid Transmission (DHT) |
| Chassis/Steering |
| Drive mode |
| Front front drive |
| Front suspension type |
| McPherson independent suspension |
| Rear suspension type |
| Multi-link independent suspension |
| Steering type |
| Electric power assist |
| Vehicle structure |
| Load-bearing |
| Wheels/Brakes |
| Front brake type |
| Ventilated disc |
| Rear brake type |
| Solid disc |
| Parking brake type |
| Electronic parking brake |
| Front tire size |
| 235/55 R19 |
| Rear tire size |
| 235/55 R19 |
| Spare tire specifications |
| Spare tire placement |
| Active safety●Standard&Optional&None |
| ABS anti-lock braking system |
| ●Standard |
| Braking force distribution (EBD/CBC, etc.) |
| ●Standard |
| Brake assist (EBA/BA, etc.) |
| ●Standard |
| Traction control (TCS/ASR, etc.) |
| ●Standard |
| Vehicle stability system (ESP/DSC, etc.) |
| ●Standard |
| Active safety warning system |
| ●Lane Departure Warning |
| ●Forward Collision Warning |
| Active braking |
| ●Standard |
| Lane assist |
| Lane Keeping Assist System |
| ●Standard |
| Lane centering |
| ●Standard |
| Fatigue driving tips |
| Active DMS fatigue detection |
| In-car vital signs detection |
| Road traffic sign recognition |
| ●Standard |
| Traffic light recognition |
| Night Vision System |
| Passive safety●Standard&Optional&None |
| Front airbags |
| ●Main driving seat |
| ●Co-pilot seat |
| Side airbags |
| ●Front Row |
| Side curtain airbags |
| ●Standard |
| Front knee airbag |
| Center airbag |
| Seat belt not fastened reminder |
| ●Standard |
| Tire Pressure Monitoring System |
| ●Tire pressure display |
| Child seat interface (ISOFIX) |
| ●Standard |
| Passive pedestrian protection |
| Safety tires |
| Assistance/Control Configuration●Standard&Optional&None |
| Parking radar |
| ●back |
| Front vehicle departure reminder |
| Driving assistance images |
| ●Reverse image |
| ●360° panoramic images |
| ●Transparent images |
| Cruise control system |
| ●Cruise control |
| ●Adaptive cruise control |
| ●Full-speed adaptive cruise control |
| Automatic Lane Change Assist |
| Automatic exit/entry of ramp |
| Navigation assisted driving |
| Driving assistance level |
| ●Level 2 |
| Automatic parking |
| Tracking reverse |
| Memory Parking |
| Automatic parking (AUTOHOLD) |
| ●Standard |
| Hill Start Assist (HAC) |
| ●Standard |
| Hill Descent Control (HDC) |
| ●Standard |
| Engine start-stop technology |
| Variable suspension adjustment |
| Air suspension |
| Electromagnetic induction suspension |
| Variable steering ratio system |
| Front axle limited slip mode |
| Rear axle limited slip mode |
| Center differential lock function |
| Low speed four-wheel drive |
| Integral Active Steering |
| Driving mode selection |
| ●sports |
| ●ECO/Economy |
| ●Standard comfort |
| Braking Energy Regeneration System |
| ●Standard |
| Low speed driving warning sound |
| ●Standard |
