Great Wall Motors Haval Big Dog 2nd Gen PHEV Mid-size SUV – EV, Rental and Road Trip
Road Pioneer offers rental, test drives, and even purchase services for the Great Wall Motors Haval Big Dog 2nd Gen PHEV. We can assist you in applying for a temporary Chinese driver’s license.
| Basic Information |
| Official guide price |
| 179,800 CNY |
| Manufacturer |
| Great Wall Motors |
| level |
| Mid-size SUV |
| Energy Type |
| Plug-in hybrid |
| Availability |
| 2024.03 |
| engine |
| 1.5T 167HP L4 Plug-in Hybrid |
| Pure electric range (km) Ministry of Industry and Information Technology |
| 81 |
| Pure electric range (km) NEDC |
| 102 |
| Pure electric range (km) WLTC |
| 81 |
| Charging time (hours) |
| Fast charge 0.5 hours |
| Fast charging capacity (%) |
| 30-80 |
| Maximum power (kW) |
| 278 |
| Maximum torque (N·m) |
| 750 |
| Gearbox |
| 2-speed DHT |
| Length x width x height (mm) |
| 4705x1908x1780 |
| Body structure |
| 5-door 5-seater SUV |
| Maximum speed (km/h) |
| 190 |
| Official 0-100km/h acceleration time (s) |
| WLTC comprehensive fuel consumption (L/100km) |
| 1.83 |
| Power consumption per 100 km (kWh/100km) |
| 17kWh |
| Electric energy equivalent fuel consumption (L/100km) |
| 1.92 |
| Minimum state-of-charge fuel consumption (L/100km) Ministry of Industry and Information Technology |
| 5.98 |
| Lowest state of charge fuel consumption (L/100km) WLTC |
| 5.98 |
| Vehicle warranty period |
| 6 years or 150,000 km |
| Body |
| Length(mm) |
| 4705 |
| Width(mm) |
| 1908 |
| Height(mm) |
| 1780 |
| Wheelbase(mm) |
| 2810 |
| Front wheel track (mm) |
| 1641 |
| Rear track (mm) |
| 1640 |
| Body structure |
| SUV |
| Number of doors |
| 5 |
| Door opening method |
| Swing door |
| Number of seats |
| 5 |
| Curb weight(kg) |
| 2075 |
| Full load mass (kg) |
| 2550 |
| Fuel tank capacity (L) |
| 55 |
| Luggage compartment volume (L) |
| 483-1362 |
| Minimum turning radius |
| engine |
| engine model |
| GW4B15E |
| Displacement (mL) |
| 1499 |
| Displacement(L) |
| 1.5 |
| Air intake form |
| Turbocharger |
| Engine layout |
| Sideways |
| Cylinder arrangement |
| L |
| Number of cylinders |
| 4 |
| Number of valves per cylinder |
| 4 |
| Compression ratio |
| Air Supply |
| DOHC |
| Maximum horsepower (Ps) |
| 167 |
| Maximum power (kW) |
| 123 |
| Maximum power speed (rpm) |
| 5500-6000 |
| Maximum torque (N·m) |
| 243 |
| Maximum torque speed (rpm) |
| 1500-4000 |
| Engine-specific technologies |
| Miller cycle, low pressure exhaust gas recirculation |
| Fuel form |
| Plug-in hybrid |
| Fuel grade |
| 92# |
| Oil supply method |
| Direct injection |
| Cylinder head material |
| Aluminum Alloy |
| Cylinder material |
| Aluminum Alloy |
| Environmental standards |
| National VI b |
| Electric Motor |
| Motor Description |
| Plug-in hybrid 299 hp |
| Motor Type |
| Permanent magnet/synchronous |
| Total motor power (kW) |
| 220 |
| Total motor horsepower (Ps) |
| 299 |
| Total torque of the motor (N·m) |
| 510 |
| Maximum power of front motor (kW) |
| 70 |
| Maximum torque of front motor (N·m) |
| 160 |
| Maximum power of rear motor (kW) |
| 150 |
| Maximum torque of rear motor (N·m) |
| 350 |
| System total power (kW) |
| 278 |
| System comprehensive torque (N·m) |
| 750 |
| Number of drive motors |
| Dual motors |
| Motor layout |
| Front + rear |
| Charging batteries |
| Battery Type |
| Lithium iron phosphate battery |
| Battery brand |
| CATL |
| Battery Pack Warranty |
| No age or mileage limit for the first owner (liability exemption clause is subject to official regulations) |
| Battery capacity (kWh) |
| 18.74 |
| Battery energy density (Wh/kg) |
| Battery charging rate |
| Charging batteries |
| Fast charge 0.5 hours |
| ●Fast charging port |
| Maximum fast charging power (kw) |
| 33 |
| Fast charging port location |
| Right fuel tank |
| Slow charging port location |
| Right fuel tank |
| Battery Temperature Management System |
| ●Low temperature heating |
| ●Liquid Cooling |
| Single pedal mode |
| ●Standard |
| VTOL mobile power station function |
| ●Standard |
| VTOL maximum external discharge power |
| 3.3kW |
| VTOV maximum external discharge power |
| Gearbox |
| Gearbox Description |
| 2-speed DHT |
| Number of gears |
| 2 |
| Gearbox Type |
| Dedicated Hybrid Transmission (DHT) |
| Chassis/Steering |
| Drive mode |
| Front four-wheel drive |
| Four-wheel drive type |
| Electric four-wheel drive |
| Front suspension type |
| McPherson independent suspension |
| Rear suspension type |
| Multi-link independent suspension |
| Steering type |
| Electric power assist |
| Vehicle structure |
| Load-bearing |
| Wheels/Brakes |
| Front brake type |
| Ventilated disc |
| Rear brake type |
| Ventilated disc |
| Parking brake type |
| Electronic parking brake |
| Front tire size |
| 245/55 R19 |
| Rear tire size |
| 245/55 R19 |
| Spare tire specifications |
| Spare tire placement |
| Active safety●Standard&Optional&None |
| ABS anti-lock braking system |
| ●Standard |
| Braking force distribution (EBD/CBC, etc.) |
| ●Standard |
| Brake assist (EBA/BA, etc.) |
| ●Standard |
| Traction control (TCS/ASR, etc.) |
| ●Standard |
| Vehicle stability system (ESP/DSC, etc.) |
| ●Standard |
| Active safety warning system |
| ●Lane Departure Warning |
| ●Forward Collision Warning |
| ●Rear Collision Warning |
| ●Reversing side warning |
| ●DOW door opening warning |
| ○Traffic ahead warning |
| ○Braking for crossing traffic ahead |
| Active braking |
| ●Standard |
| Lane assist |
| ●Standard |
| Lane Keeping Assist System |
| ●Standard |
| Lane centering |
| ●Standard |
| Fatigue driving tips |
| ●Standard |
| Active DMS fatigue detection |
| In-car vital signs detection |
| Road traffic sign recognition |
| ●Standard |
| Traffic light recognition |
| Night Vision System |
| Passive safety●Standard&Optional&None |
| Front airbags |
| ●Main driving seat |
| ●Co-pilot seat |
| Side airbags |
| ●Front Row |
| Side curtain airbags |
| ●Standard |
| Front knee airbag |
| Center airbag |
| Seat belt not fastened reminder |
| ●Standard |
| Tire Pressure Monitoring System |
| ●Tire pressure display |
| Child seat interface (ISOFIX) |
| ●Standard |
| Passive pedestrian protection |
| Safety tires |
| Assistance/Control Configuration●Standard&Optional&None |
| Parking radar |
| ○forward |
| ●back |
| Front vehicle departure reminder |
| ●Standard |
| Driving assistance images |
| ●Reverse image |
| ●Vehicle side blind spot image |
| ●360° panoramic images |
| ●Transparent images |
| Cruise control system |
| ●Cruise control |
| ●Adaptive cruise control |
| ●Full-speed adaptive cruise control |
| Automatic Lane Change Assist |
| ○Optional |
| Automatic exit/entry of ramp |
| ○Optional |
| Navigation assisted driving |
| ○High-speed road section |
| Driving assistance level |
| ●Level 2 |
| Automatic parking |
| ○Optional |
| Tracking reverse |
| ○Optional |
| Memory Parking |
| Automatic parking (AUTOHOLD) |
| ●Standard |
| Hill Start Assist (HAC) |
| ●Standard |
| Hill Descent Control (HDC) |
| ●Standard |
| Engine start-stop technology |
| ●Standard |
| Variable suspension adjustment |
| Air suspension |
| Electromagnetic induction suspension |
| Variable Steering Ratio System |
| Front axle limited slip mode |
| Rear axle limited slip mode |
| Center differential lock function |
| Low speed four-wheel drive |
| Integral Active Steering |
| Driving mode selection |
| ●sports |
| ●Off-road |
| ●Snow |
| ●ECO/Economy |
| ●Standard comfort |
| Braking Energy Regeneration System |
| ●Standard |
| Low speed driving warning sound |
| ●Standard |

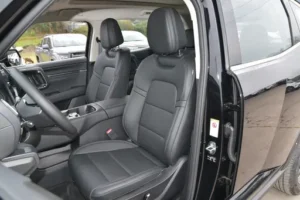

EV Picture Exhibition
